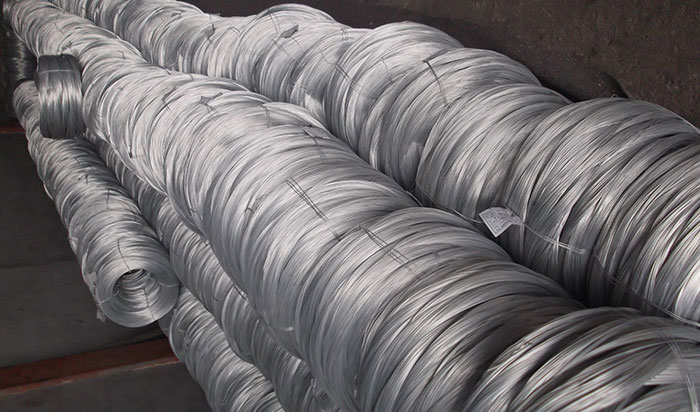

5B05 Aluminum alloy wire

5B05 aluminum alloy wire is an aeronautical special rivet alloy, which is used to process rivet wire, and is riveted on aluminum and magnesium alloy components working below 200 ℃. The rivet wire rod diameter is 1.6~10.0mm, the supply state is in H x 8, but the rivet is used in the return state, the annealing system (270~330) ℃ /40min, air cooling.

Chemical composition of 5B05alloy
Alloy	Si	Fe	Cu	Mn	Mg	Zn		Ti	Others		Al
									Each	Total
5B05	0.4	0.4	0.2	0.20~0.6	4.7~5.7	－	0.6(Si+Fe)	0.15	0.05	0.15	Remainder

Typical room temperature shear strength of 5B05 aluminum alloy wire
Temper	d / mm	X	min	max
H×8	5	223	204	240
	－	216	207	232
	2.5~4	235	205	255
	1.6~10.0	205	201	211
O	－	186	－	－
